HN426 Ultra-High Pressure Hydraulic Oil Press
500-ton ultra-high pressure, single or dual barrel
A 500-ton ultra-high-pressure press on a 30mm steel frame (42 MPa cake, 70 MPa system). Choose single barrel for low investment or dual barrel for continuous output. Presses walnut, apricot kernel, tiger nut and other hard, high-value seeds in one cycle.
Product Overview
The HN426 ultra-high-pressure hydraulic oil press comes in a single-barrel standard version and a dual-barrel high-efficiency version. The frame is welded from 30mm thick steel plate and delivers up to 500 tons of pressing force, with 42 MPa cake pressure and 70 MPa system pressure.
It handles both cold and hot pressing. Conventional seeds such as camellia, rapeseed, peanut, soybean and flaxseed are no problem, and it also presses high-value hard materials — walnut kernels, in-shell walnuts, apricot kernels, Xanthoceras sorbifolia and tiger nuts — in a single pressing cycle. On the dual-barrel model, double sliding rails let one barrel press while the other is loaded at the same time, so there is no shutdown for loading and batch efficiency jumps.
Structure & Build
30mm welded steel frame
A 30mm thickened steel-plate frame gives high rigidity and resists deformation under repeated 500-ton loads. At 42 MPa of cake pressure, materials — including hard specialty seeds — are squeezed thoroughly, so dry-cake residual oil is lower and oil yield is markedly higher.

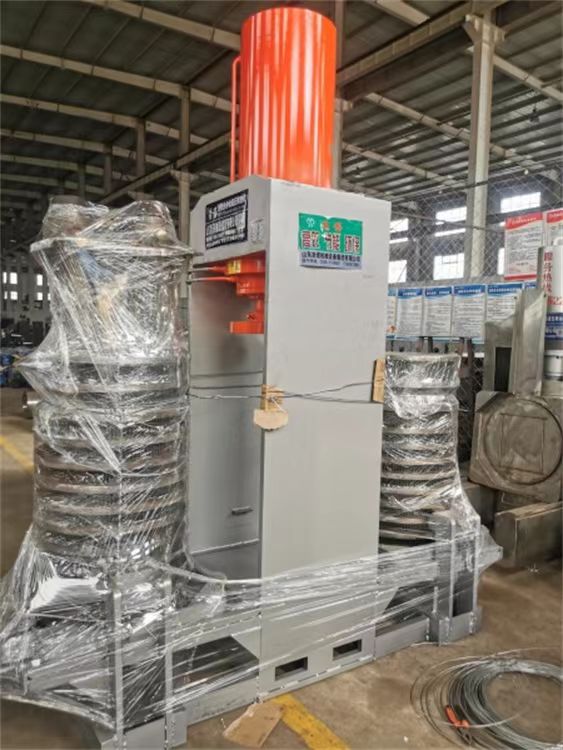

Single or dual barrel on sliding rails
The single-barrel version has a small footprint and a lower entry cost. The dual-barrel version works alternately, removing the loading gap and roughly doubling continuous efficiency. You pick the layout to fit your workshop space and daily target.
Key Performance Features
Low-temperature physical pressing
Static hydraulic extrusion means no screw friction heat. Cold pressing keeps the seed’s natural nutrition and flavour; the crude oil is low in impurities and clear in colour, which cuts the cost of later refining.
One machine, many materials
Strong versatility covers both ordinary seeds and hard specialty oilseeds. Beyond oil extraction it can also do solid-liquid separation and dewatering of oil sludge and oil residue, opening an extra income line for the plant.
Low power, durable and easy to run
The main motor is only 2.2 kW, so energy use stays low. Core hydraulic components are stable and reliable with a low failure rate, and one operator can watch the whole pressing cycle, holding labor cost down.
Technical Specifications
| Model | HN426 Ultra-High Pressure Hydraulic Oil Press |
|---|---|
| System Pressure | 70 MPa (single & dual barrel) |
| Pressing Force | 500 Tons |
| Cake Surface Pressure | 42 MPa/cm² |
| Motor Power | 2.2 kW |
| Machine Weight | 2.4 Ton (single barrel) / 2.7 Ton (dual barrel) |
| Cylinder Outer Diameter | 426 mm |
| Piston Inner Diameter | 320 mm |
| Barrel Inner Diameter | 390 mm (customizable) |
| Barrel Height | 800 mm (customizable) |
| Cylinder Stroke | 850 mm (customizable) |
| Overall Dimension | 1200×1200×2750 mm (single) / 2100×1200×2750 mm (dual) |
| Barrel Options | Single barrel / Dual barrel |
| Applicable Materials | Camellia seed, rapeseed, peanut, soybean, flaxseed, lacquer seed, walnut kernel, in-shell walnut, apricot kernel, Xanthoceras sorbifolia, tiger nut; also oil residue and oil sludge for solid-liquid separation |
Applicable Materials
Camellia seed, rapeseed, peanut, soybean, flaxseed and lacquer seed, alongside high-value hard materials — walnut kernel, in-shell walnut, apricot kernel, Xanthoceras sorbifolia and tiger nut. It also presses various oil residues and oil sludge for solid-liquid separation and dewatering.
Typical Applications
Why Buyers Choose This Machine
Buyers of hydraulic pressing equipment focus on pressure, oil-output stability, footprint, energy use and continuous capacity. The HN426 answers all five: single/dual options match budget and output, 500 tons of pressure guarantees good results on hard seeds, and the machine is robust and simple to maintain. Barrel size and cylinder stroke can be customised, and it can be paired with our oil filter and feeding equipment as a complete line. It is the preferred choice for small and medium oil plants and specialty cold-pressed oil projects.
