Automatic Electromagnetic Drum Roaster
Even, flameless roasting before hot pressing
Rotating-drum roaster with electromagnetic heating and independent temperature control — heats oilseeds evenly with no scorching, no open flame and one-button automatic operation. Three sizes from 160 to 450 kg per batch.
Product Overview

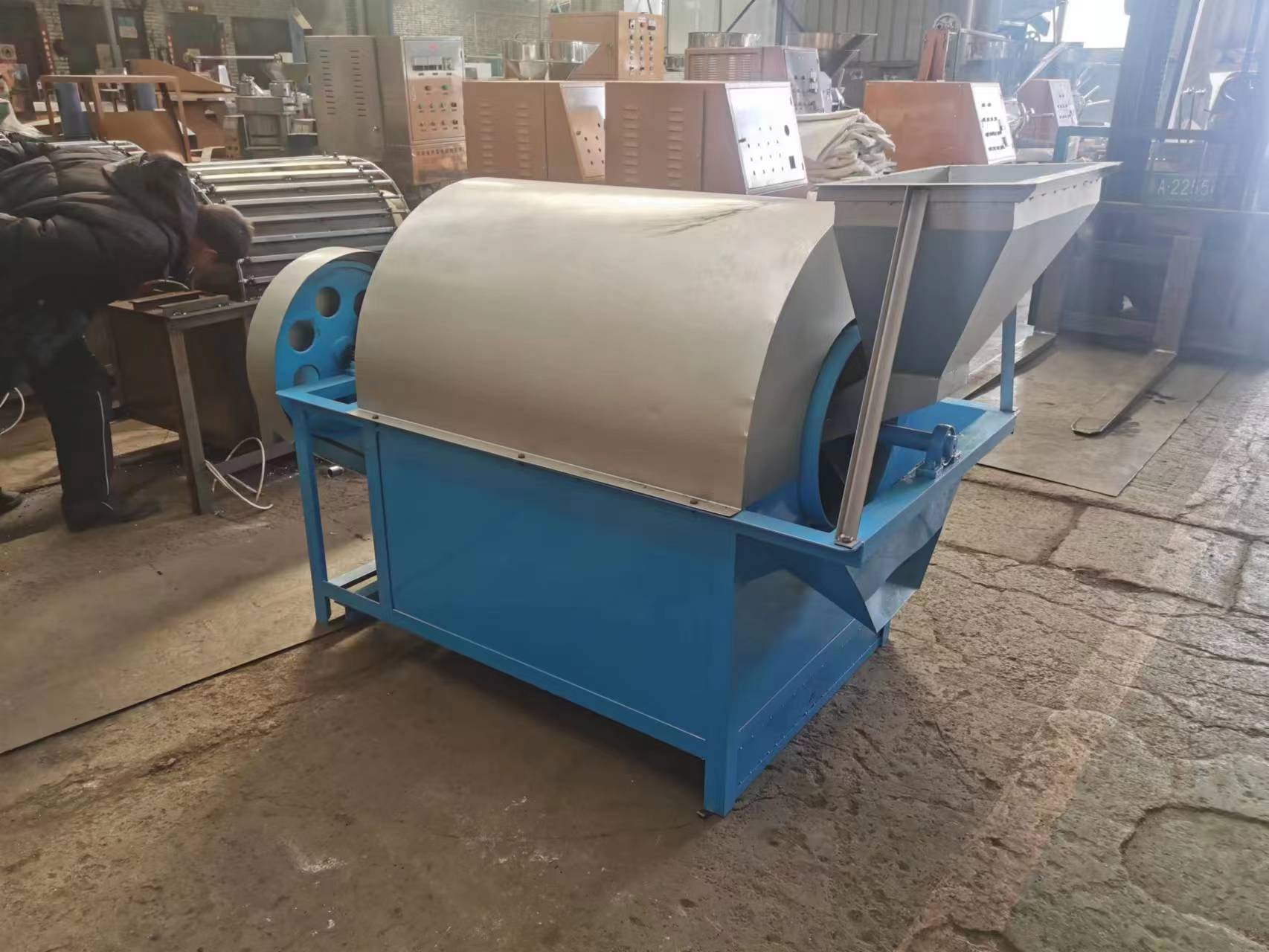

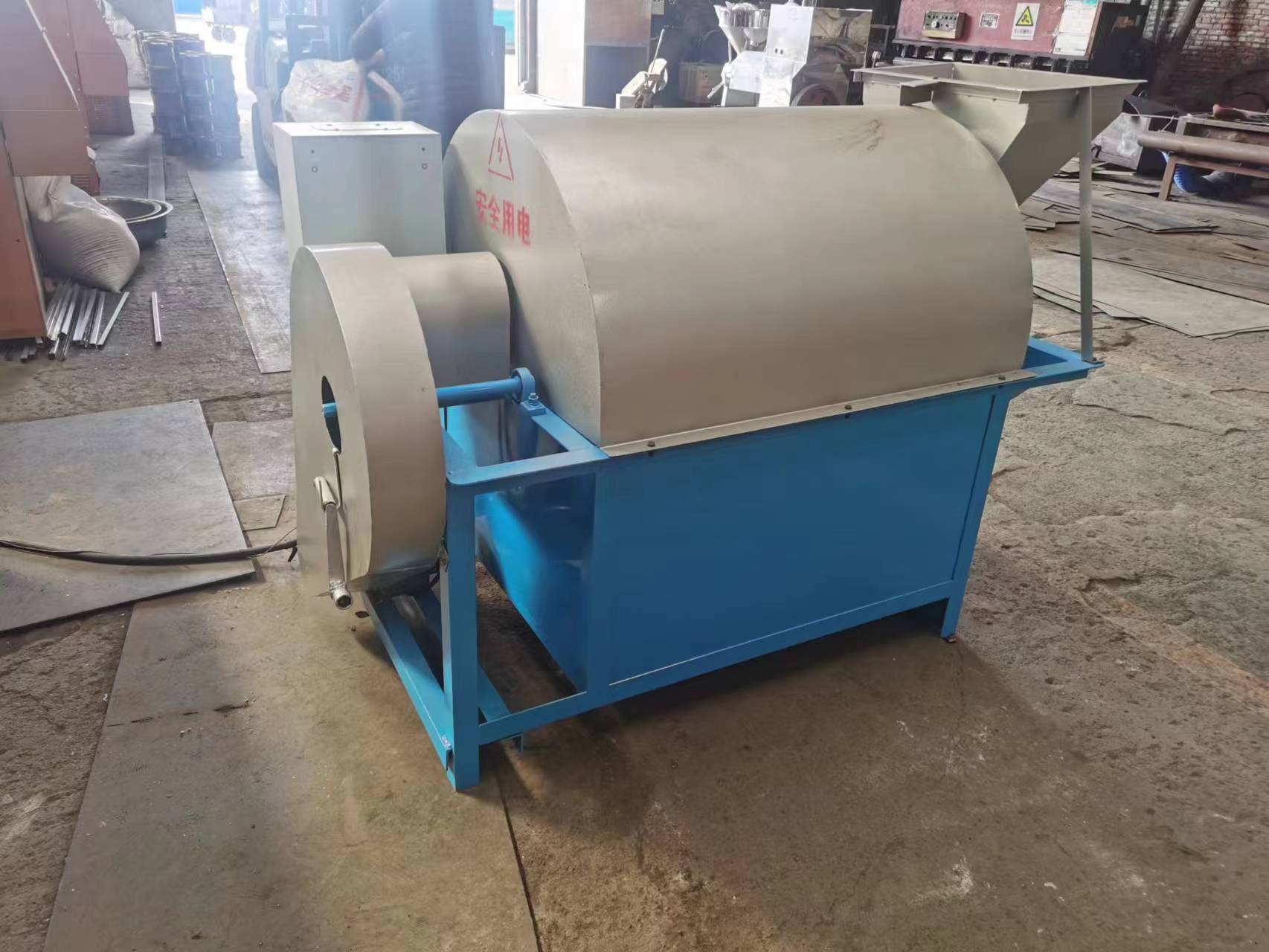

This drum roaster is used to roast oilseeds before hot pressing, the stage that brings out aroma and lowers moisture for a higher yield. It is built as a frame, feed hopper, rotating drum and flame hood. The motor drives the drum through a V-belt and chain wheel, turning the seeds continuously, while electromagnetic heating supplies adjustable flameless heat. One-button automatic control makes the daily routine simple.
Three standard sizes are available — the 100#, the 130# and a thickened 130# — covering batches from roughly 160 kg up to 450 kg. Other sizes can be made to order to match your press throughput.
Structure & Build
Rotating drum with sealed heating
The enclosed drum heats quickly and keeps heat inside, and the constant turning means every seed is heated evenly — no burnt bottom layer and no half-roasted top layer, which is exactly what good pressing oil needs.
Independent temperature control
Heating power and roasting temperature are set separately and held automatically, with shut-off when the set point is reached. Flameless electromagnetic heating removes the fire risk of gas or coal roasters and makes the workshop cleaner.
Key Performance Features
Three standard capacities
100# handles about 160–220 kg per batch, 130# about 200–350 kg, and the thickened 130# about 360–450 kg.
Even roasting, no scorching
Drum rotation plus flameless heating gives a uniform roast and protects oil flavour and colour.
Automatic one-button operation
After setting temperature and time, the machine runs the roast and shuts off by itself; one worker can watch it alongside the press.
Custom sizes available
Drum dimensions and heating power can be adjusted to match the rest of your production line.
Technical Specifications
| Model | 100# / 130# / Thickened 130# Automatic Drum Roaster |
|---|---|
| Capacity per Batch | 160–220 kg / 200–350 kg / 360–450 kg |
| Drum Size | 70×98 cm / 73×130 cm / 80×130 cm |
| Motor | Three-phase 4-pole, 0.75 kW / 1.1 kW / 1.5 kW |
| Heating Power | 18 kW / 27 kW / 27 kW (electromagnetic) |
| Overall Dimension | 155×85×110 cm / 180×90×120 cm / 195×100×130 cm |
| Heating Method | Electromagnetic, flameless, sealed drum |
| Control | Independent temperature control with automatic shut-off |
Applicable Materials
All oilseeds roasted before hot pressing — sesame, peanut, rapeseed, sunflower seed, flaxseed, camellia seed and similar crops. Also used for roasting nuts, grains and other food materials.
Typical Applications
Why Buyers Choose This Machine
Even roasting is one of the cheapest ways to improve both oil yield and aroma. The sealed electromagnetic drum saves energy, removes open-flame risk and gives batch-after-batch consistency without demanding a skilled operator.
