Wood/Coal-Fired Thermal Oil Flat-Bottom Wok
Off-grid thermal-oil wok heated by wood, coal or biomass — only 1.1 kW electrical for stirring
A wood/coal-fired thermal-oil flat-bottom wok with a 1000 mm stainless pan, 1.1 kW integrated motor-reducer stirrer and a user-built external stove. Burns wood, coal or biomass to heat the thermal oil — only 1.1 kW electrical needed for agitation. Ideal for off-grid mills, rural workshops and low-cost roasting of oilseeds, nuts, sauces and herbs.
Product Overview
This fuel-fired thermal-oil wok shares the double-layer reinforced bottom and stainless-steel body of our electric model, but replaces the 27 kW electric heating rods with an external stove that burns wood, coal or biomass. The stove sits beneath the wok and heats the thermal oil through the pan base; the oil then carries heat evenly to every part of the inner wall. Because the heating comes from fuel and not electricity, the only electrical load is the 1.1 kW motor-reducer that drives the stirrer — so the wok runs on a normal single-phase supply, or even a small generator, in places where grid power is unreliable or expensive.
An integrated motor-reducer on top drives the stirring paddles so material tumbles continuously and never scorches, just as in the electric version. The encircling furnace chamber has a side access door for loading fuel and clearing ash, and a manual discharge gate at the bottom lets you unload the finished batch straight into a bin. The user builds the stove masonry on site to match the wok base, which keeps the unit affordable and lets you size the firebox to your local fuel.
Structure & Build
External fuel stove + double-layer oil-filled bottom
The jacket between the double-layer bottom is filled with about 60 kg of grade-350 °C thermal oil. A user-built stove beneath the wok burns wood, coal or biomass; the flame envelops the pan base and heats the oil, which transfers heat uniformly to the inner wall — no electric rods, no high-power supply.

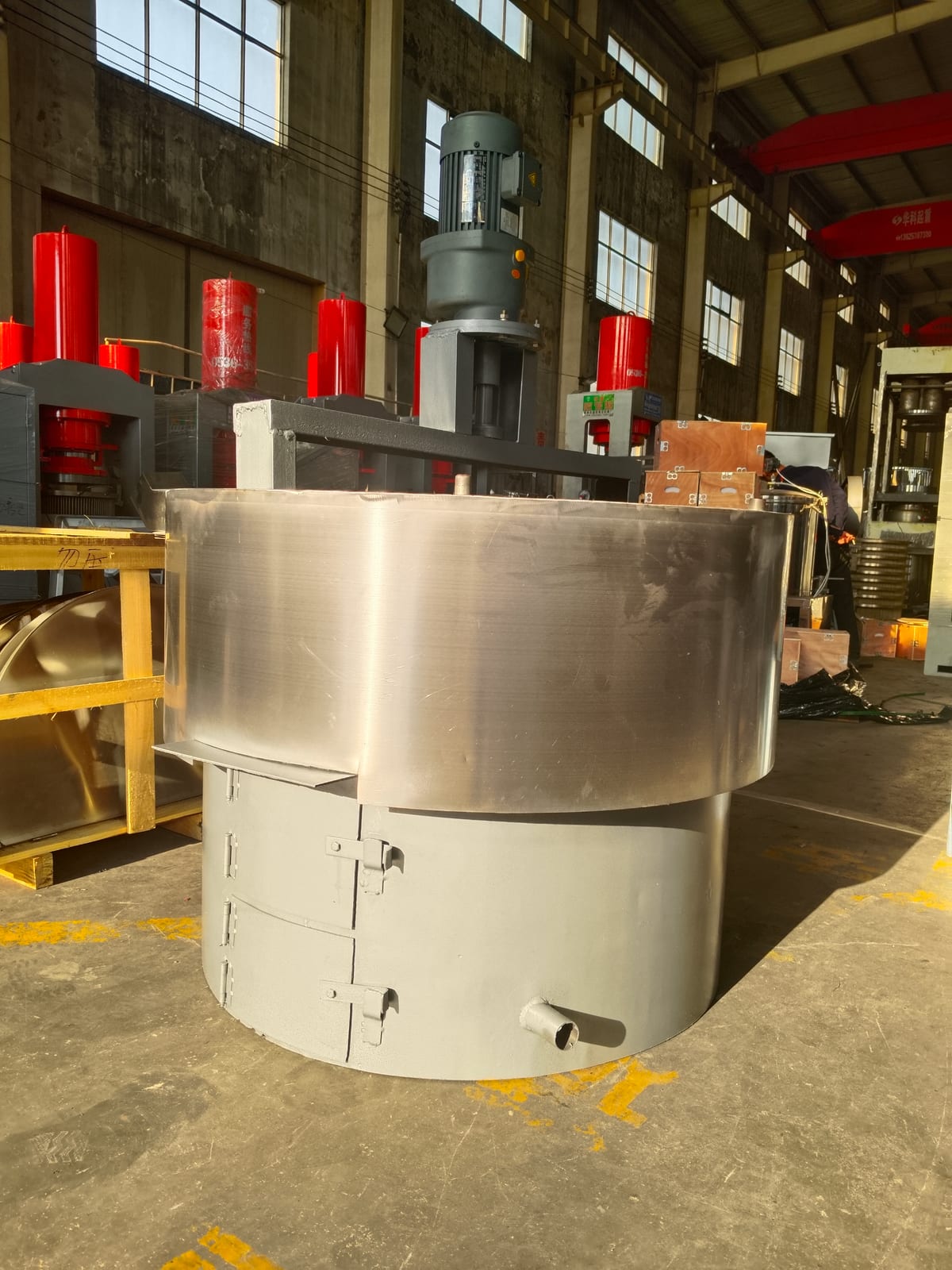

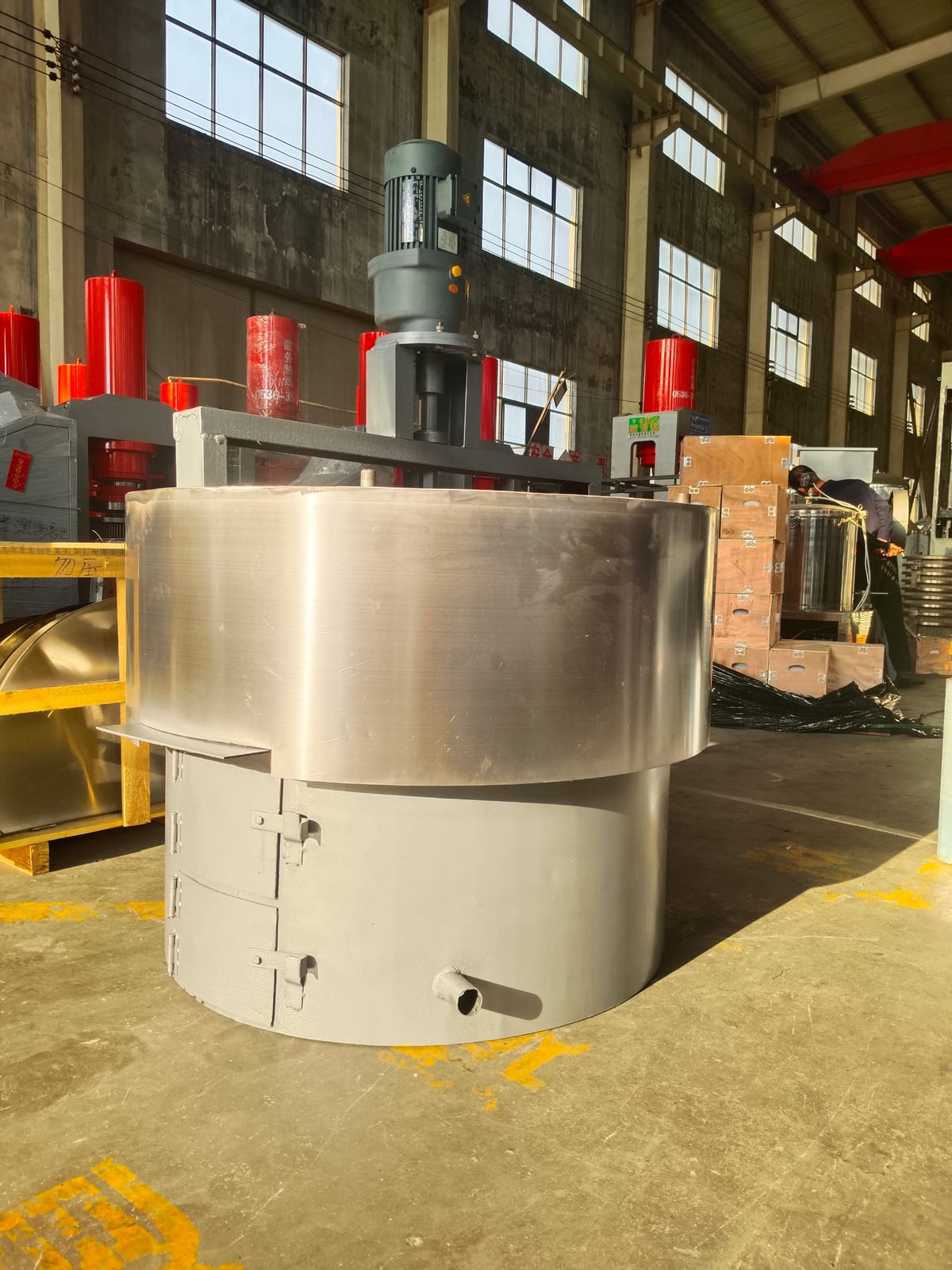

Encircling furnace, side door, manual discharge gate

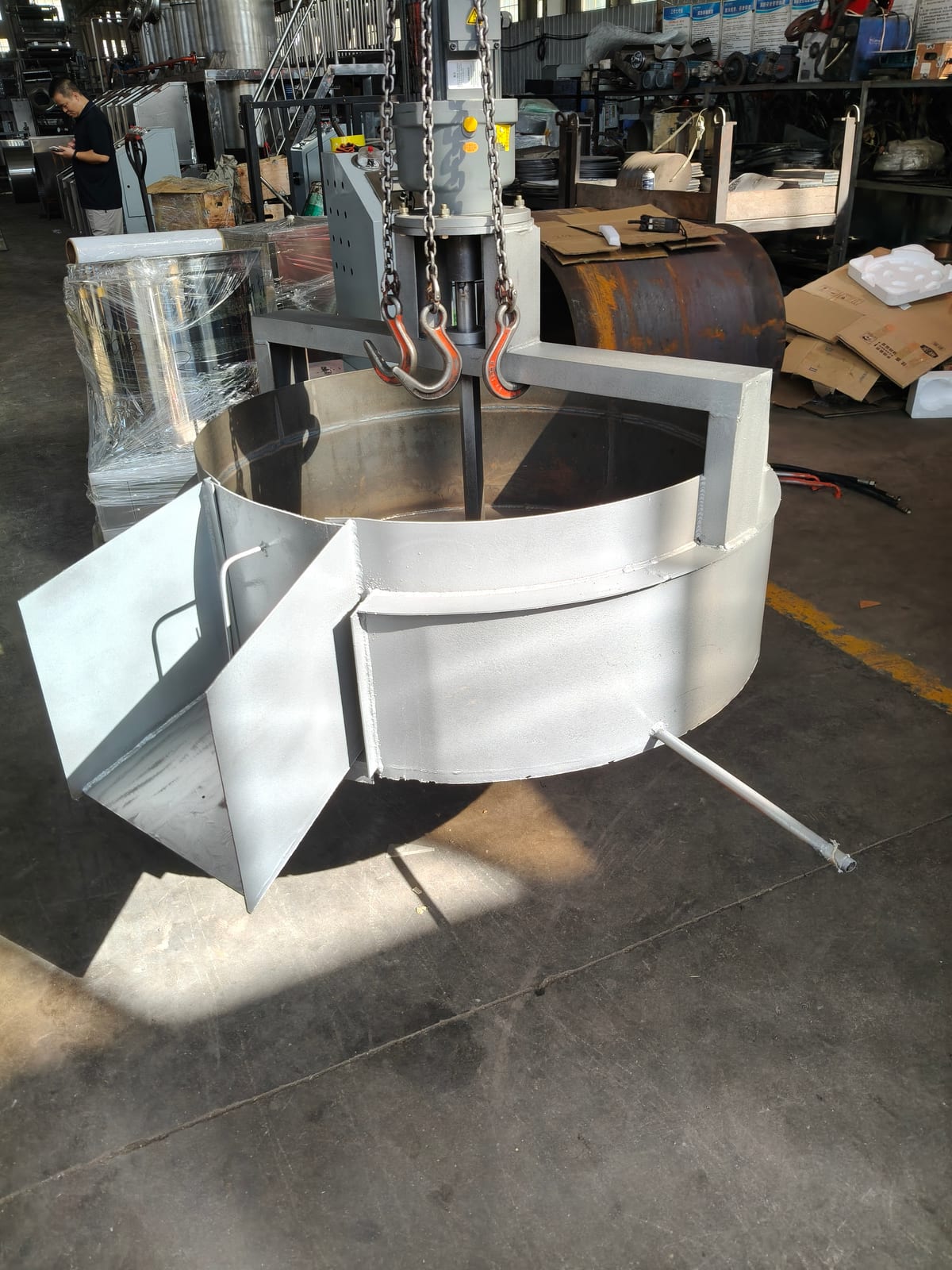

A combustion chamber wraps around the wok base with an independent side door for fuel loading and ash removal. A manual discharge gate at the lower wok body opens to unload finished material. The whole unit sits on a carbon-steel frame for stable mounting.
Key Performance Features
Wood, coal or biomass — burn what is cheap and local
The stove accepts firewood, coal and biomass briquettes, so you run on whatever fuel costs least in your region. No dependency on a high-power electricity supply, and no fuel-price shock from the grid.
Only 1.1 kW electrical — runs off-grid
The only electrical load is the 1.1 kW stirrer motor on 220 V/380 V. A normal supply or a small generator is enough, making the wok practical for rural workshops and outdoor sites where the electric model cannot go.
Even thermal-oil heat, no scorching
The oil fills the whole jacket and transfers heat evenly to the pan wall; the continuous stirrer keeps the batch moving. No local hot spots, no burnt seed — the same roasting quality as the electric model, just with a different heat source.
Independent furnace door — easy fuel and ash
The side door opens independently for adding fuel and clearing ash mid-shift, so you keep the fire steady without stopping the stirrer or opening the whole chamber.
On-site stove masonry — sized to your fuel
You build the stove on site to match the wok base and your local fuel. This keeps the delivered machine affordable and lets you size the firebox for hardwood, softwood, coal or biomass as you prefer.
Technical Specifications
| Model | Wood/Coal-Fired Thermal Oil Flat-Bottom Wok |
|---|---|
| Inner Diameter | 1000 mm (1 m) |
| Outer Diameter | 1200 mm (1.2 m) |
| Wok Depth | 380 mm |
| Discharge Outlet Width | 260 mm |
| Discharge Outlet Height from Floor | 500 mm |
| Reducer Power | 1.1 kW |
| Total Electrical Power | 1.1 kW (agitation only — heating is fuel-fired) |
| Heating Method | Wood / coal / biomass, external user-built stove heating thermal oil |
| Wok Material | Stainless steel |
| Equipment Dimensions | Approx. 1550 × 1200 mm (excluding stove) |
| Thermal Oil Required | 350 °C grade, approx. 60 kg |
| Stove Requirement | User on-site masonry — combustion chamber aligned with wok base |
| Frame | Carbon steel |
| Discharge | Manual gate at lower wok body |
Applicable Materials
Oilseeds for hot pressing — sesame, peanut, rapeseed, sunflower seed. Also sauce stir-frying, filling cooking, candy sugar melting, nut roasting, traditional Chinese medicine processing and seasoning production — especially in regions with limited power or abundant biomass fuel.
Typical Applications
Why Buyers Choose This Machine
Where the electric wok needs a 27 kW supply, this fuel-fired version needs only 1.1 kW — just enough to turn the stirrer. Wood, coal or biomass heats the thermal oil through a stove you build on site, so the running cost is whatever your local fuel costs, not the electricity tariff. The same double-layer stainless body and continuous stirrer give the same even roasting quality. For off-grid mills, rural workshops and any buyer whose power bill is the bottleneck, this is the wok that opens the door to automatic pan roasting.
