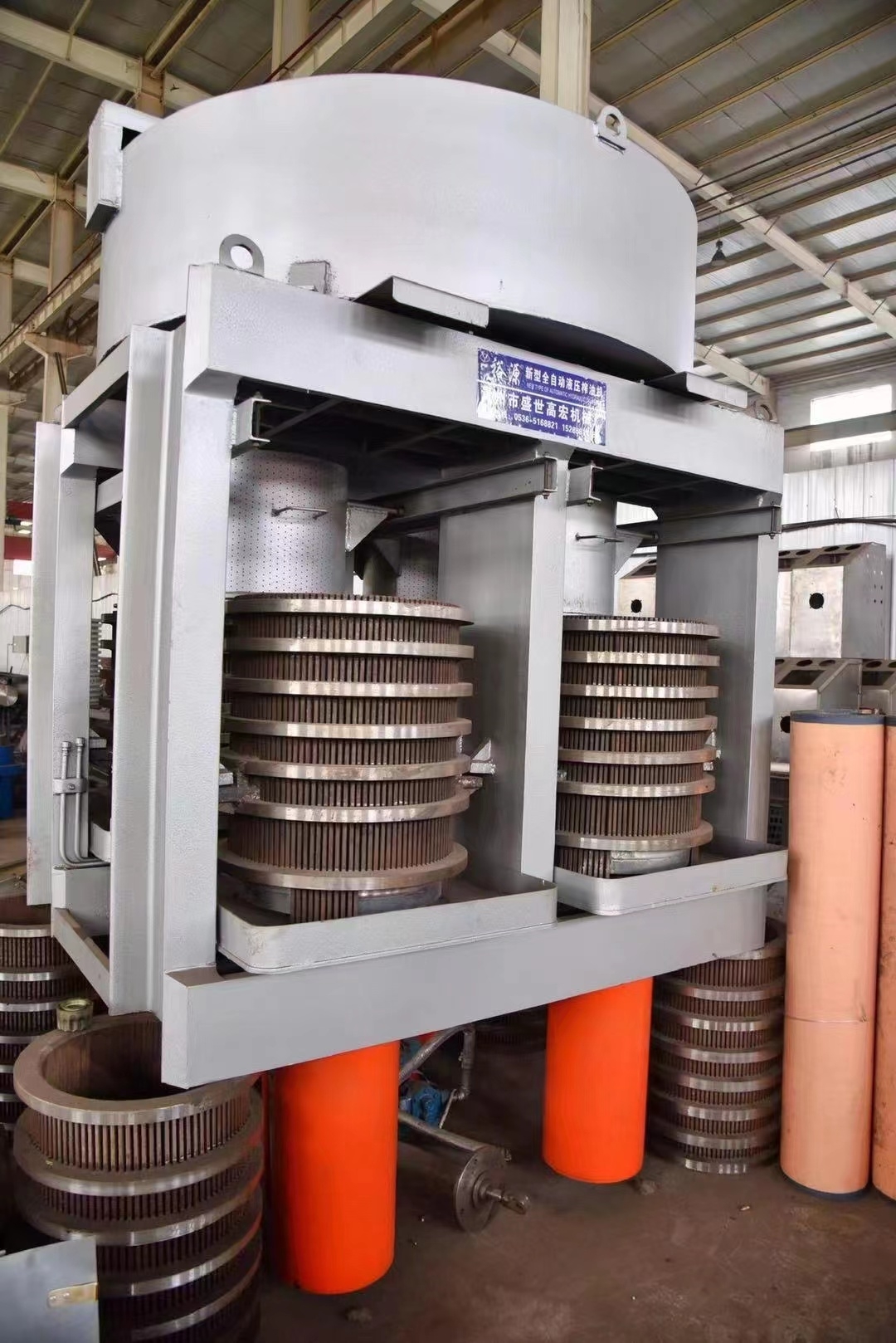

Vertical Hydraulic Oil Sludge Press
60–75 MPa recovery press for viscous sludge
A vertical static high-pressure press built for viscous oil sludge, paste and settled residues that screw presses cannot handle. 60–75 MPa squeezes out recoverable oil and leaves a dry, disposable cake.
Product Overview
The oil sludge press is a vertical hydraulic machine for materials a screw expeller simply cannot process — sticky sludge, paste and settled residues that slip on the screw instead of being pressed. It works by static, low-temperature high-pressure extrusion at 60–75 MPa, which drives the oil out without friction heat or oxidation.
Recovered oil can be sold or re-refined, and the dry cake is far lighter to dispose of — it can often go to animal feed or fertiliser. A large barrel and multi-layer precision filtration handle the difficult consistency without blocking.
Structure & Build
Large barrel with multi-layer precision filtration
The oversized barrel and layered filter structure cope with thick, sticky material without clogging or material slippage — the two failures common on screw machines handling sludge.
Vertical static high-pressure hydraulics
Pressure is applied straight down and held, giving an even squeeze through the whole batch and a dry, uniform cake.
Key Performance Features
Handles the materials others reject
Built for viscous sludge, paste and settled residues that block or slip in screw presses.
Low-temperature static pressing protects oil quality
No friction heat means no oxidation or scorching; the recovered oil keeps better quality and value.
60–75 MPa for ultra-low residual cake
Thorough pressing removes the maximum recoverable oil and leaves a dry cake.
Cuts waste volume and cost
Recovered oil is resold or reused, and dry cake can become feed or fertiliser — a waste-handling cost turns into two saleable outputs.
One key, one operator
Feeding, holding, releasing and discharging are one-key automatic on a stable, durable frame; one worker runs the cycle.
Technical Specifications
| Type | Vertical static low-temperature hydraulic oil sludge press |
|---|---|
| Barrel Diameter | 390 / 400 / 450 mm (customizable) |
| Batch Volume | About 95–150 L |
| Maximum Working Pressure | 60–75 MPa |
| Working Mode | One-key feeding / holding / releasing / discharging |
| Staff Required | One operator |
Applicable Materials
Vegetable oil sludge
Refining bottom sludge, crude-oil sediment, frying waste oil residue, rapeseed/peanut/camellia residual sludge, food-factory frying residue
Animal grease residue
Lard, beef tallow, chicken/duck slaughter residue, viscera refining sludge, paste oil residue, catering grease waste
Chemical / industrial sludge
Industrial waste oil sludge, mechanical oily sludge, waste engine oil sediment, refining edge sludge
Other oily waste
Kitchen waste, food-factory bread and crumb residue, sewage oily sludge
Typical Applications
Why Buyers Choose This Machine
This machine pays for itself from both ends: oil that used to be thrown away is recovered and sold, while the waste leaving the plant is a dry cake with a fraction of the original weight and disposal cost — often usable as feed or fertiliser. It is a four-in-one answer: oil recovery, waste reduction, cost saving and environmental compliance.
